With a long legacy of proven grit, Diamondback® is a true workhorse, delivering hard-working reliability in trusted lineup of models. Excellent low-light capability. Brilliant contrast and sharpness that serves up impressive images. Renowned for toughness and accuracy, it’s built with durable construction and a lightweight design, giving hunters the confidence to push further and succeed in any terrain. Simple to use and rugged enough for any hunt, Diamondback® is made to go the distance, from the East to the Rockies and beyond.

Low-Glare Matte Black Anodize: Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
Waterproof: Designed to withstand harsh weather conditions.
Fogproof: Designed to withstand a wide range of temperatures.
Shockproof: Designed to withstand the highest levels of recoil and impact.

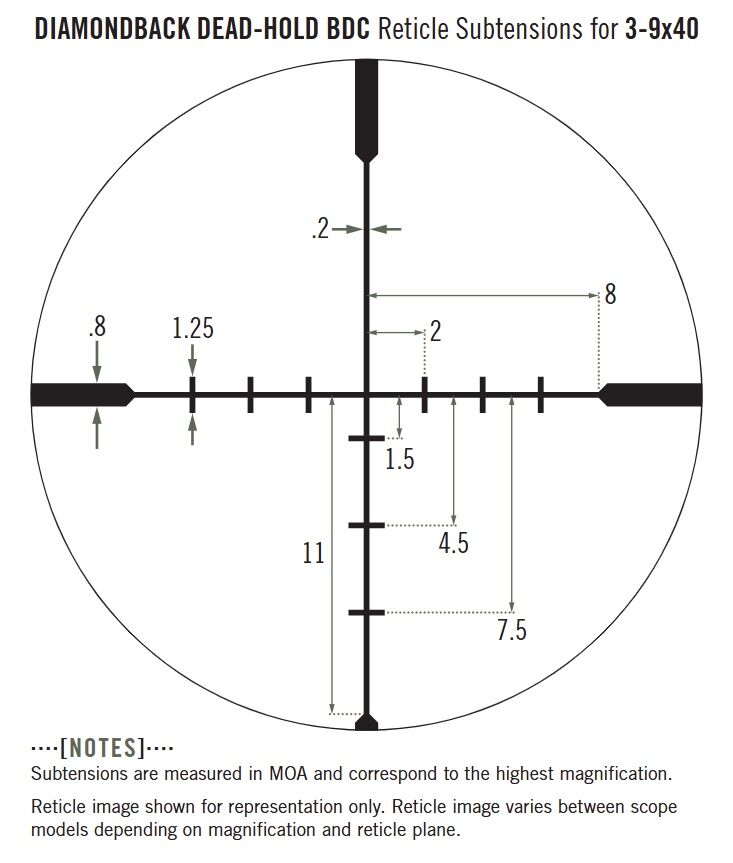

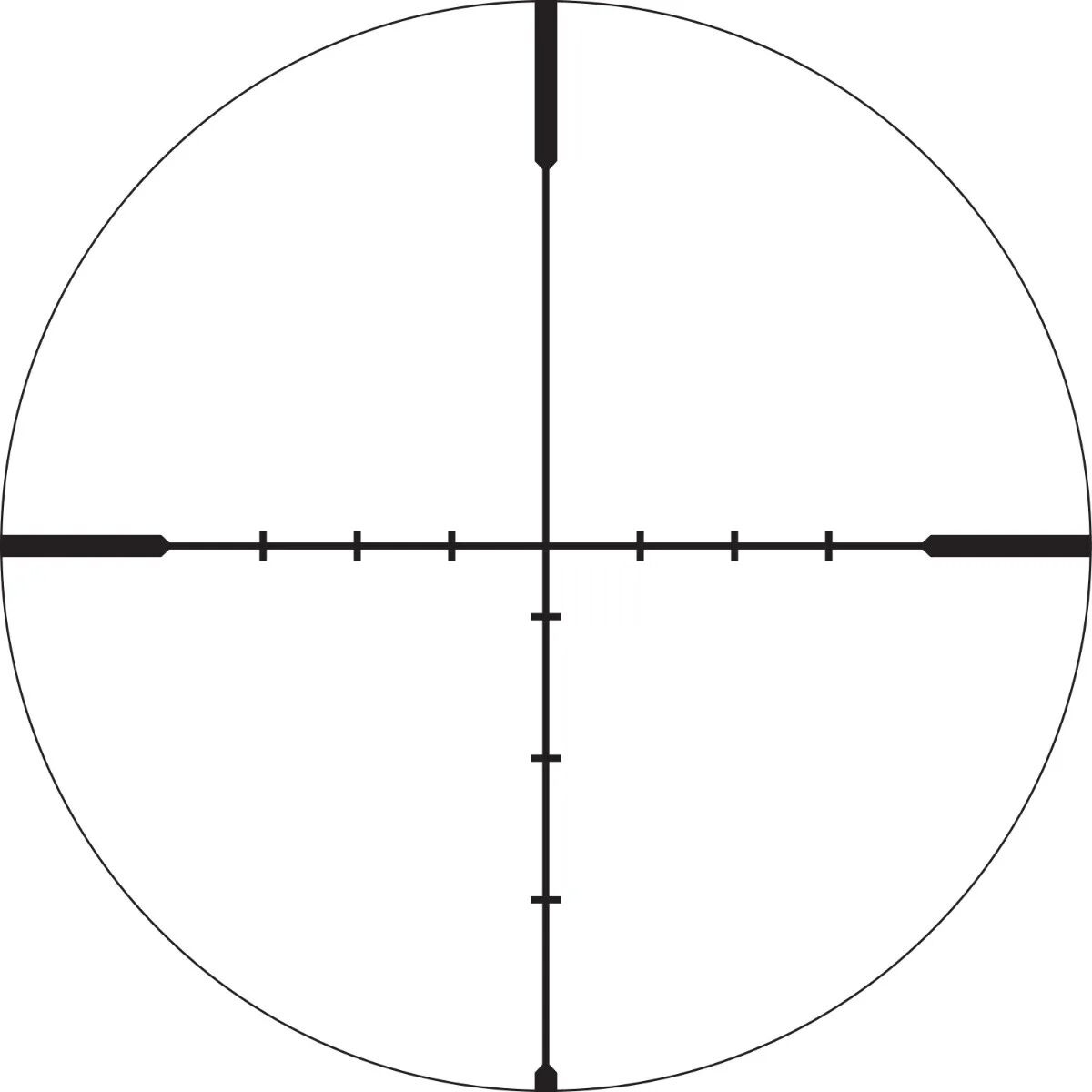

Dead-Hold® BDC (MOA) Reticle: Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
Included in the Box: Removable Lens Covers, Lens Cloth

Specifications

Field of View	44.6-Ft to 14.8-Ft @ 100-Yd
Turret Style	Capped
Adjustment Graduation	1/4 MOA
Travel Per Rotation	15 MOA
Max Elevation Adjustment	70 MOA
Max Windage Adjustment	70 MOA
Parallax Setting	100-Yd
Total Length (L1)	11.61-In
Front Mounting Space (L2)	2.0-In
Rear Mounting Space (L3)	2.1-In
Total Mounting Space (L4)	5.4-In
Objective Length (L5)	3.07-In
Eyepiece Length (L6)	3.1-In
Objective Diameter (H1)	1.89-In
Eyepiece Diameter (H2)	1.69-In
